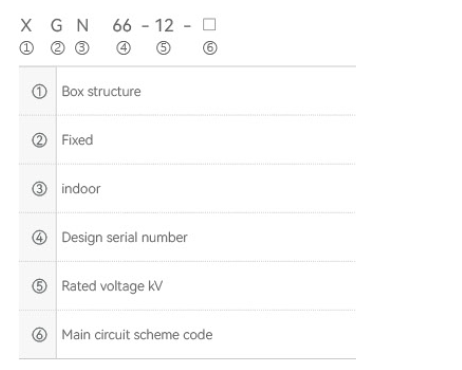

XGN66-12(Z) BOX TYPE FIXED ENCLOSEDSWITCHGEAR

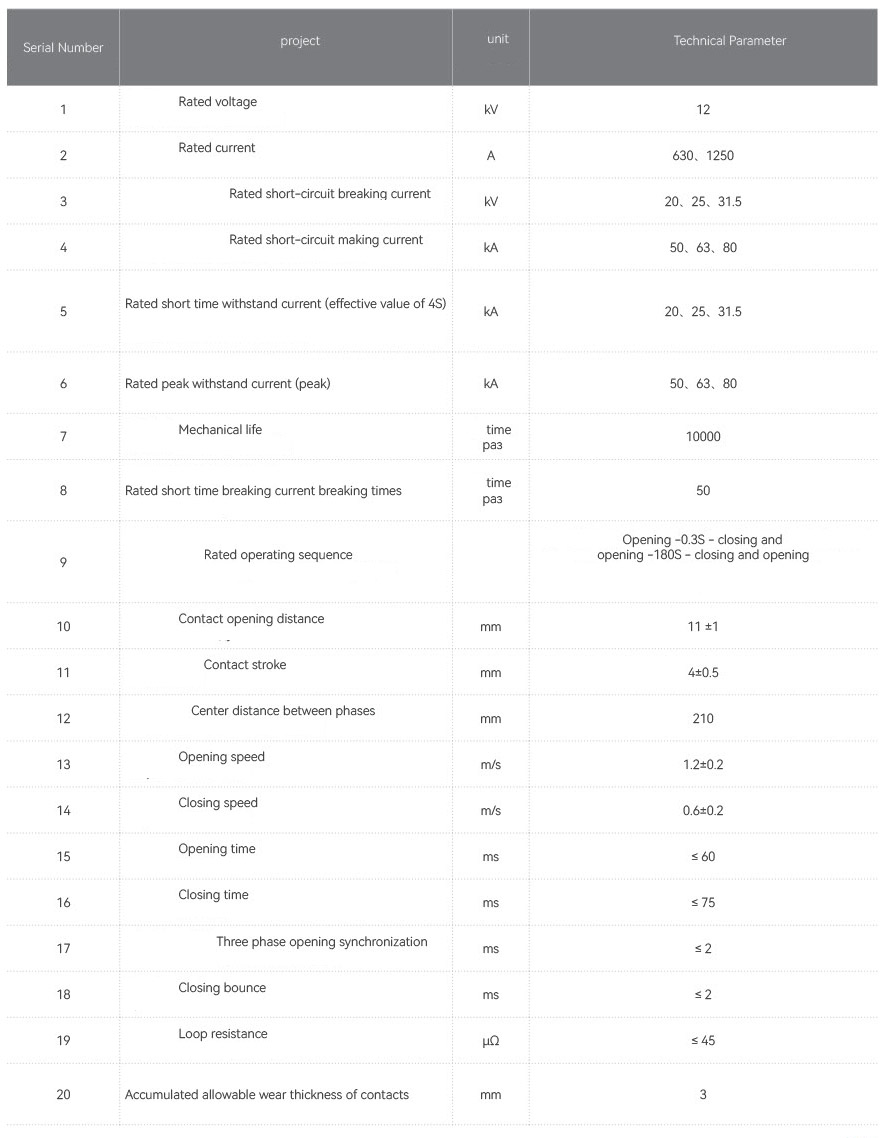

XGN66-12 (Z) fixed enclosed switchgear (hereinafter referred to as switchgear) is a complete set of high-voltage electrical products produced by our company, which meets the requirements of national standard GB3906 "3-35kV AC Metal Enclosed Switchgear," D404 "Technical Conditions for Ordering Indoor AC High Voltage Switchgear of the Ministry of Electric Power," and also meets the international standard IEC60298 "Requirements for AC Metal Enclosed Switchgear and Control Equipment above 1kV and below 52kV".

This product has absorbed excellent foreign technology and is small, only 50% of the volume of ordinary switchgear. Circuit breakers have high reliability and good performance. The "five prevention" interlocking mechanism has the advantages of reliability and simplicity. The switchgear is a set of 3.6, 7.2, and 12kV three-phase AC 50Hz single busbar segmented indoor devices used for receiving and distributing electrical energy.

It has functions such as controlling, protecting, and monitoring circuits, which can be used in various types of power plants, substations, industrial and mining enterprises, high-rise buildings, and other places. It can also run on network cabinets for application in switching stations.

The cabinet body is welded with high-quality angle steel.

The circuit breaker room is located in the middle (lower) part of the cabinet, making installation, debugging, and maintenance convenient. The standard installation is a ZN63A (VS1-12) circuit breaker, with a pressure relief channel to ensure personal safety.

Adopting advanced and reliable rotary isolation switches, it can safely enter the circuit breaker room for maintenance when the main busbar is live.

The protection level of the entire cabinet is IP2X.

Equipped with a reliable mandatory mechanical locking device, it is simple and effective to meet the "five prevention" requirements.

Have a reliable grounding system.

There is an observation window installed on the door, which can clearly observe the working status of the components inside the cabinet.

The operating mechanism adopts the JSXGN locking mechanism used in the XGN2-12 cabinet, which is simple, reliable, convenient, and practical.

The incoming and outgoing cables are lower than the front of the cabinet bottom, making it convenient for users to connect.
