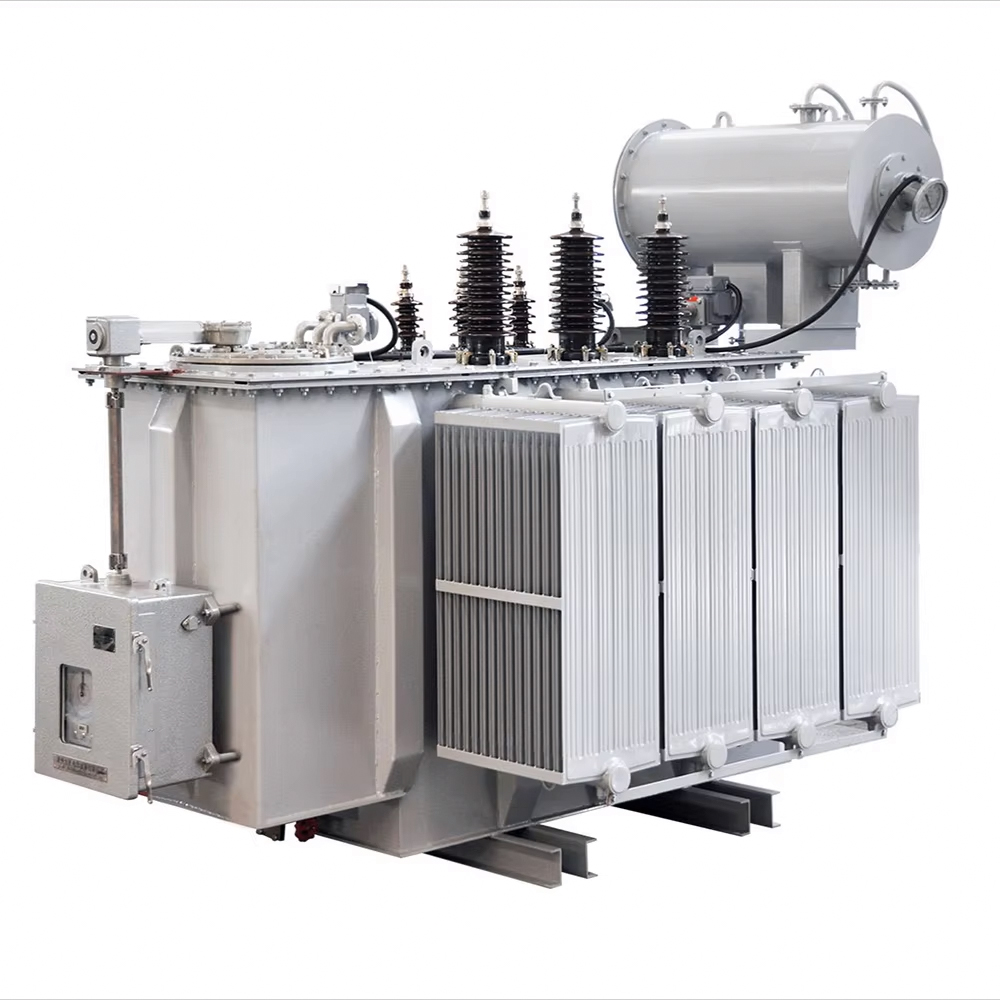

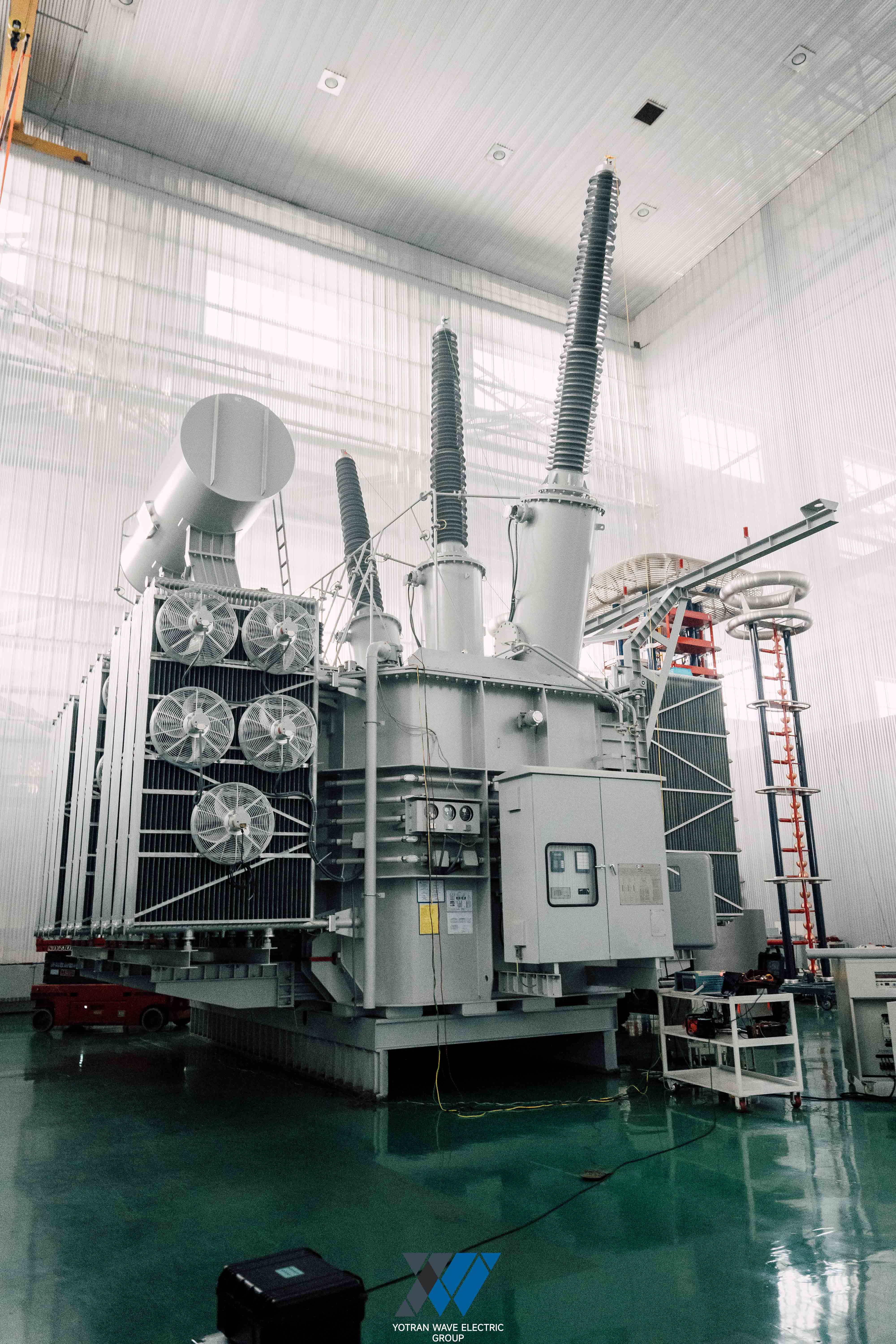

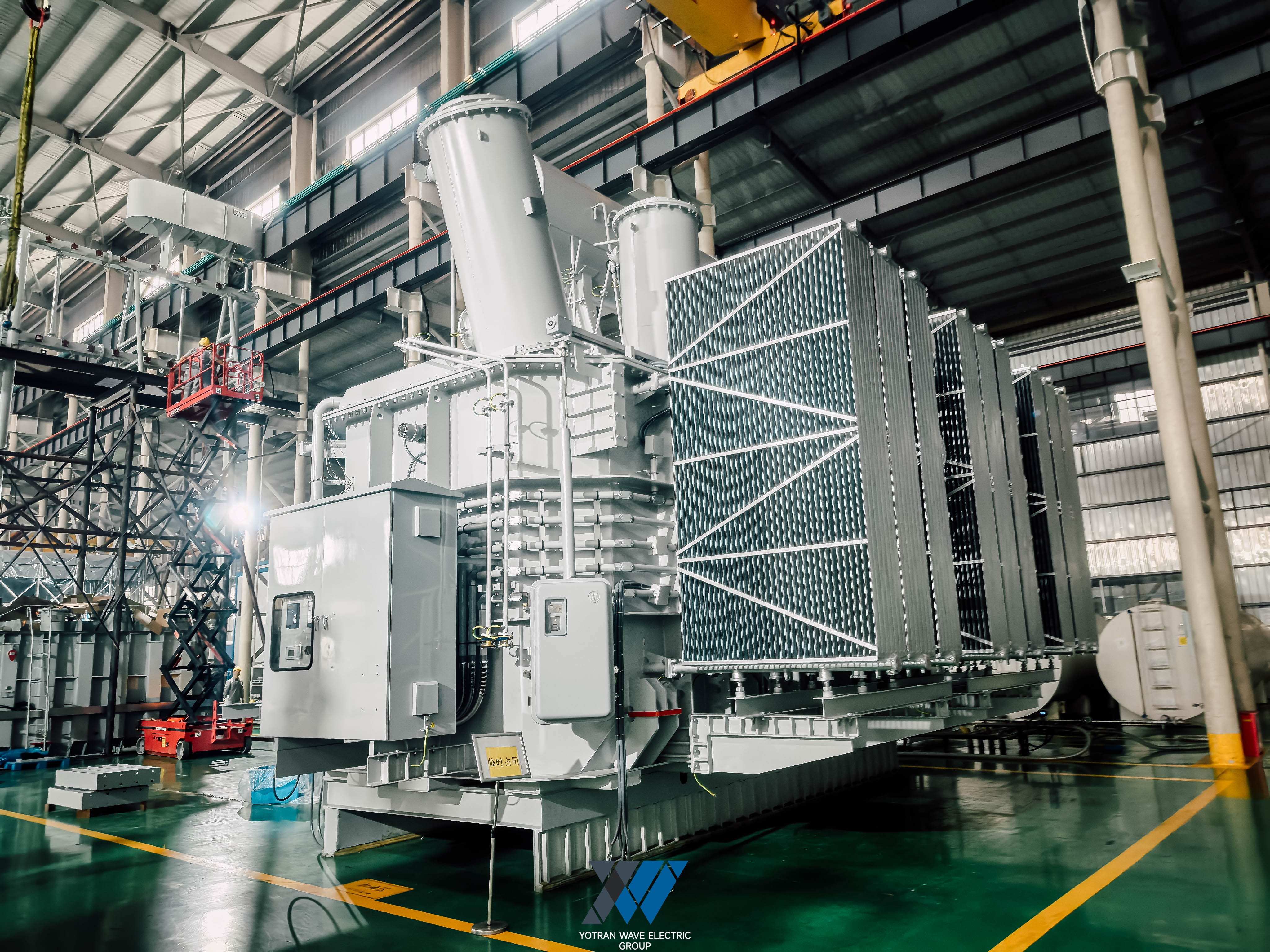

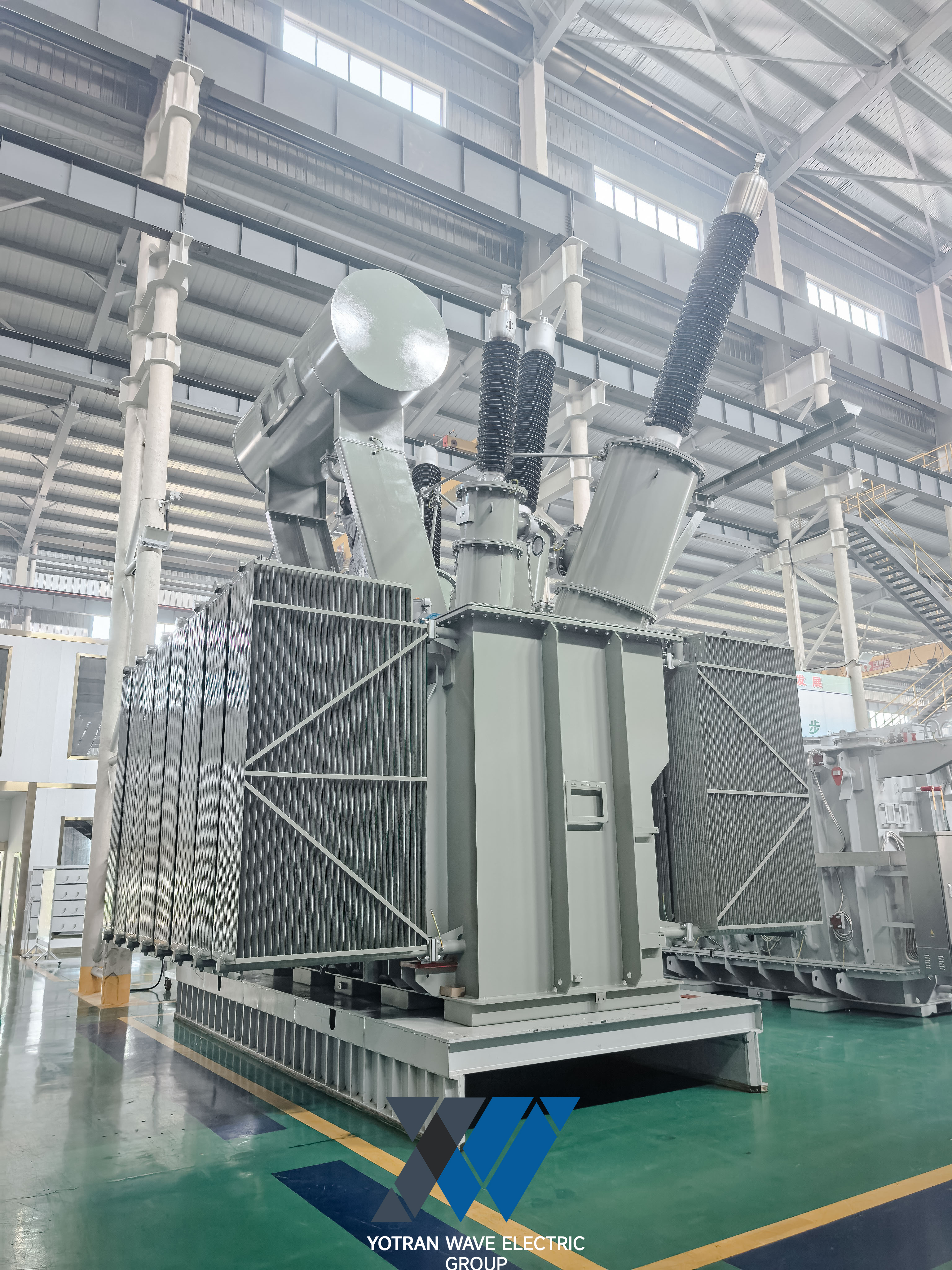

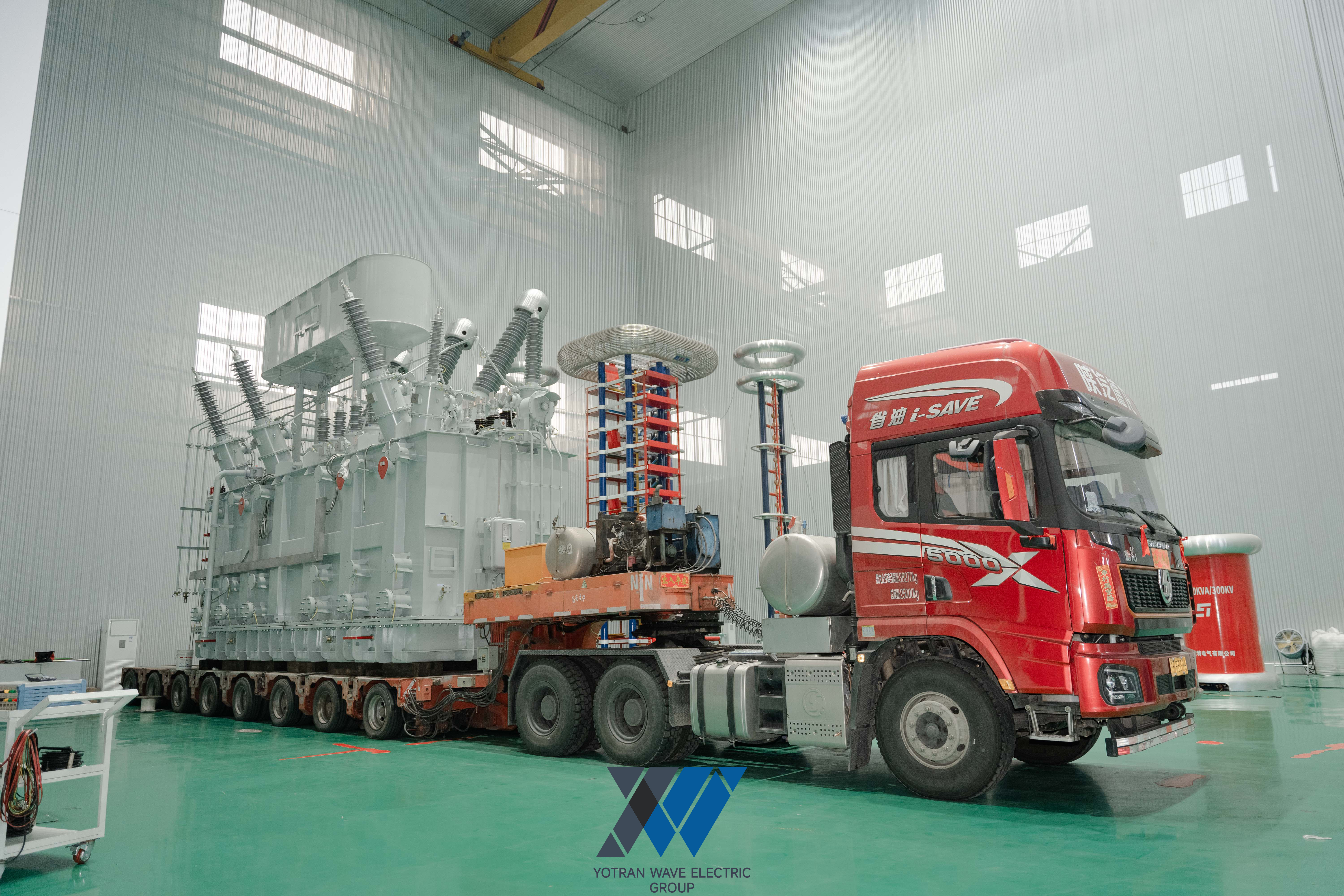

Ultra-High-Voltage Power Transformer (110kV-220kV)
Our product SSZ20-240000/220 has successfully passed the short-circuit withstand
capability and all routine type tests at the National Transformer Quality Supervision
and Inspection Center.
This transformer is stable, reliable, economical, and environmentally friendly, making it suitable for power plants, substations, and large industrial, mining, and petrochemical enterprises.
This transformer is stable, reliable, economical, and environmentally friendly, making it suitable for power plants, substations, and large industrial, mining, and petrochemical enterprises.

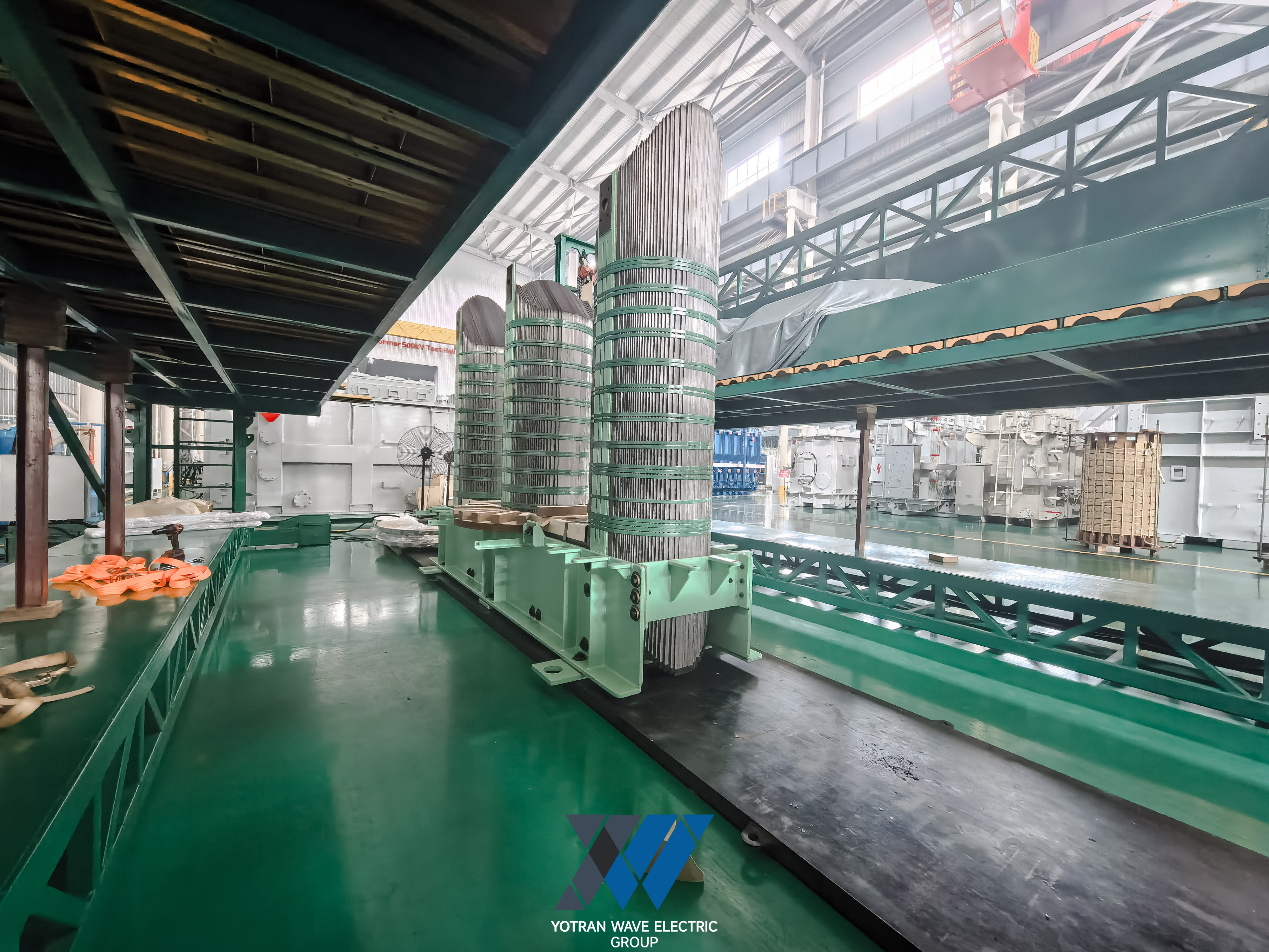

The ultra-high-voltage (UHV) transformer adopts Toshiba's analysis software and the company's proprietary calculation and verification program for comprehensive optimization and verification of the transformer core, coil, body, leads, oil tank, and other components to ensure excellent product performance. Advanced process equipment, careful material selection, and efficient manufacturing result in a transformer that features compact size, lightweight, low loss, low partial discharge, low noise, high product quality, energy efficiency, environmental friendliness, easy installation and maintenance, reliable operation, and reduced operating costs.
Video of a high-voltage transformer
★Product Details
The ultra-high-voltage (UHV) transformer adopts Toshiba's analysis software and the company's proprietary calculation and verification program for comprehensive optimization and verification of the transformer core, coil, body, leads, oil tank, and other components to ensure excellent product performance. Advanced process equipment, careful material selection, and efficient manufacturing result in a transformer that features compact size, lightweight, low loss, low partial discharge, low noise, high product quality, energy efficiency, environmental friendliness, easy installation and maintenance, reliable operation, and reduced operating costs.

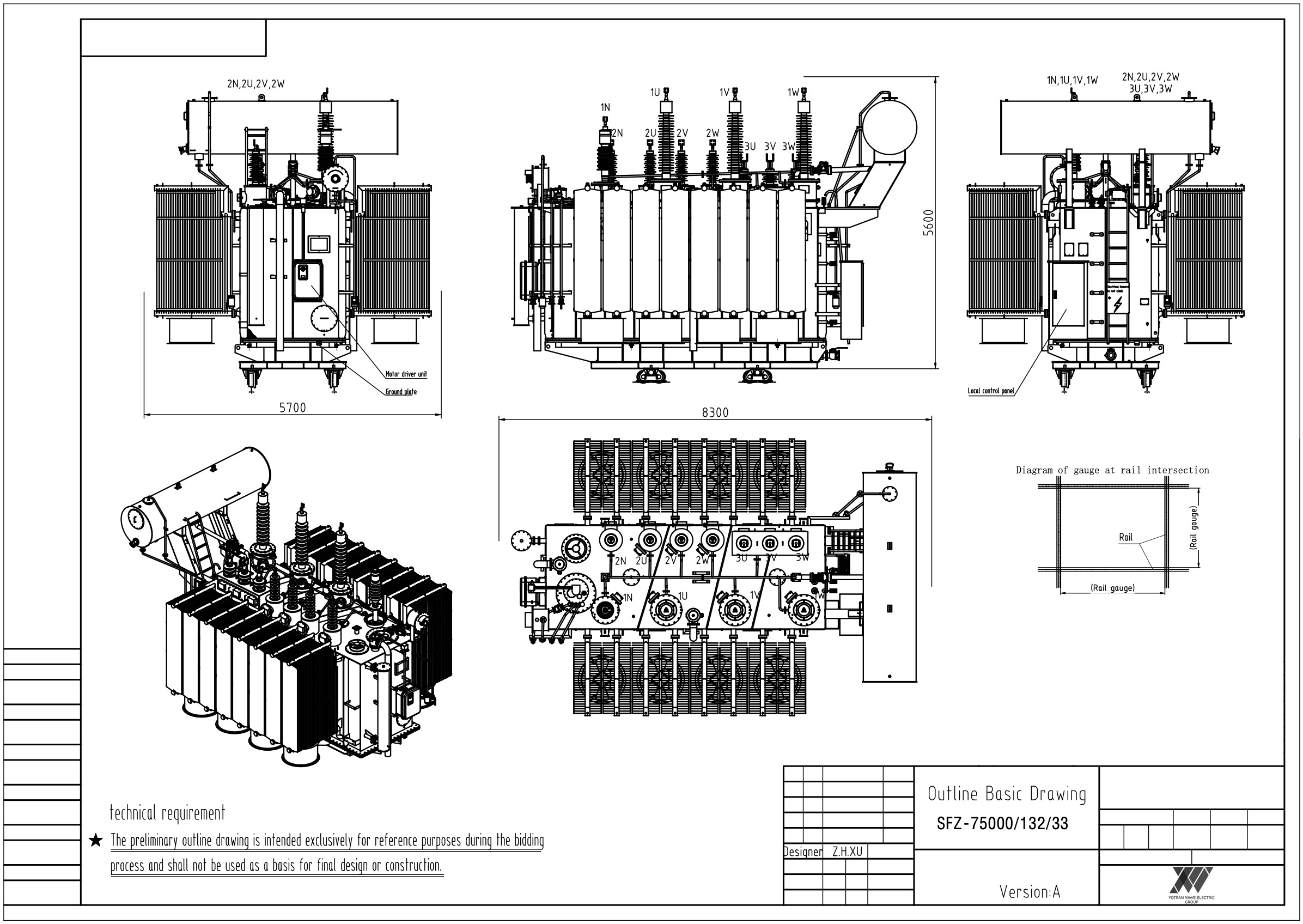

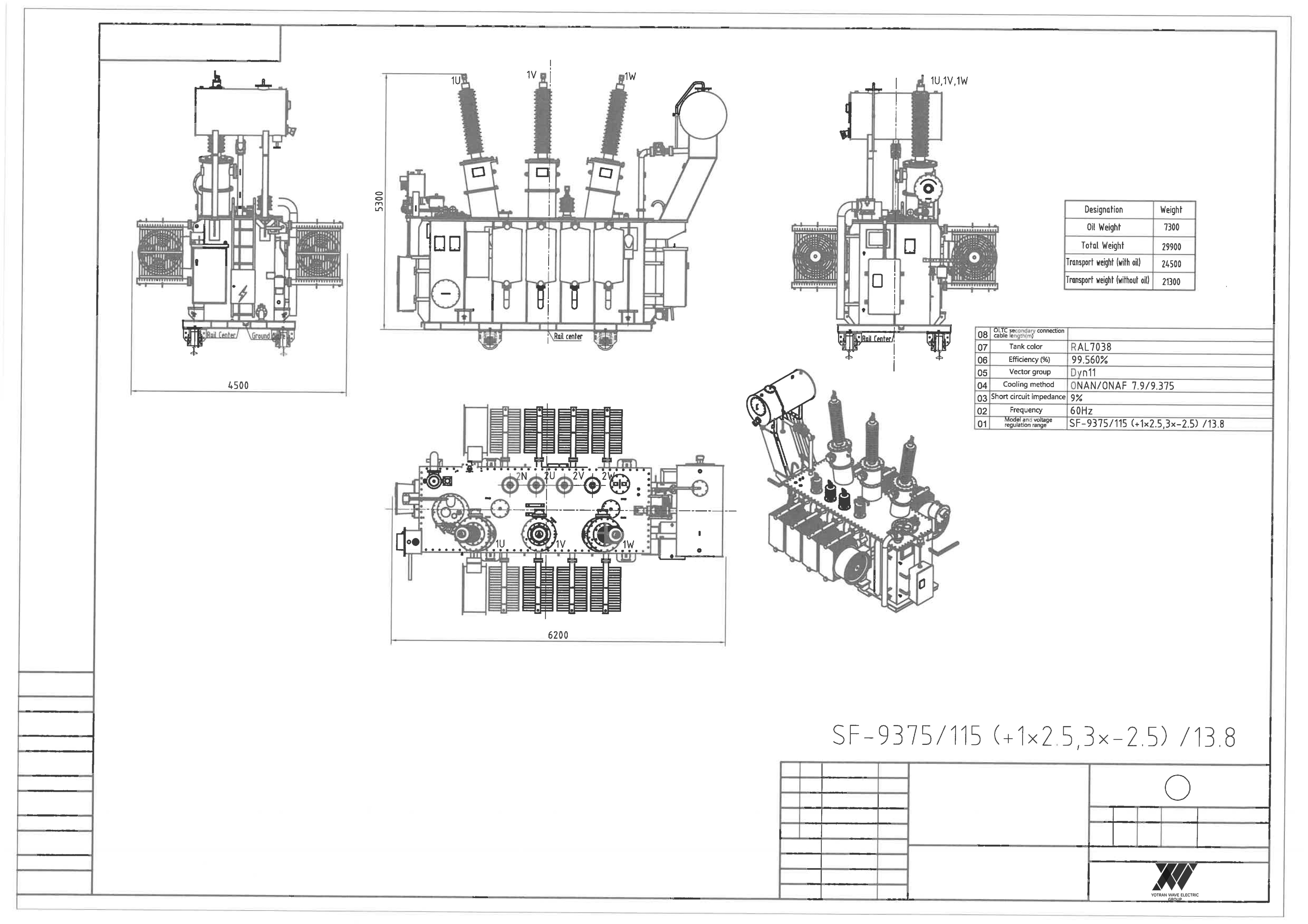

Technical Parameters
| 110kV Power Transformer | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Capacity (kVA) | Voltage Combination | Connection Symbol | No-load Loss (kW) | On-load Loss (kW) (75℃) | Short Circuit Impedance (%) | No-load Current (%) | Weight (kg) | Dimensions (mm) | |||||
| High Voltage (kV) | Tapping Range (%) | Low Voltage (kV) | Oil | Total | Length | Width | Height | ||||||
| 6300 | 121 | ±8x1.25% | 6.3 6.6 10.5 11.0 |
YNd11 | 10 | 36.9 | 10.5 | 0.6 | 6500 | 21100 | 4540 | 4350 | 4580 |
| 8000 | 12 | 45 | 0.6 | 7260 | 24600 | 4860 | 4400 | 4630 | |||||
| 10000 | 14.2 | 53.1 | 0.5 | 7860 | 27900 | 4900 | 4450 | 4830 | |||||
| 12500 | 16.8 | 63 | 0.5 | 8600 | 31600 | 5010 | 4500 | 4960 | |||||
| 16000 | 20 | 77 | 0.45 | 9300 | 35600 | 5620 | 4520 | 5080 | |||||
| 20000 | 24 | 91.7 | 0.4 | 10000 | 39800 | 5730 | 4550 | 5200 | |||||
| 25000 | 28.4 | 110.7 | 0.4 | 11100 | 45200 | 5820 | 4590 | 5290 | |||||
| 31500 | 33.5 | 133.2 | 0.35 | 12500 | 49600 | 5930 | 4820 | 5400 | |||||
| 40000 | 40.4 | 156.6 | 0.3 | 13700 | 57100 | 6100 | 4930 | 5500 | |||||
| 50000 | 47 | 194.4 | 0.25 | 14800 | 64700 | 6450 | 5050 | 5590 | |||||
| 63000 | 56.8 | 234 | 0.25 | 15600 | 71800 | 6970 | 5190 | 5690 | |||||
| 220kV Power Transformer | ||||||||
|---|---|---|---|---|---|---|---|---|
| Rated Capacity (kVA) | High Voltage (kV) | Tapping Range (%) | Low Voltage (kV) | Connection Symbol | Short Circuit Impedance (%) | No-load Loss (kW) | On-load Loss (kW) | No-load Current (%) |
| 31500 | 220 230 |
±8 x 1.25% ±8 x 1.5% |
6.3 6.6 10.5 11 13.8 15.75 18 20 35 38.5 |
Ynd11 | 12-14 | 32 | 128 | 0.7 |
| 40000 | 41 | 149 | 0.7 | |||||
| 50000 | 49 | 180 | 0.65 | |||||
| 63000 | 58 | 209 | 0.65 | |||||
| 75000 | 67 | 238 | 0.6 | |||||
| 90000 | 77 | 274 | 0.55 | |||||
| 120000 | 94 | 328 | 0.55 | |||||
| 150000 | 112 | 385 | 0.5 | |||||
| 160000 | 117 | 404 | 0.49 | |||||
| 180000 | 128 | 436 | 0.46 | |||||
| 240000 | 160 | 539 | 0.42 | |||||

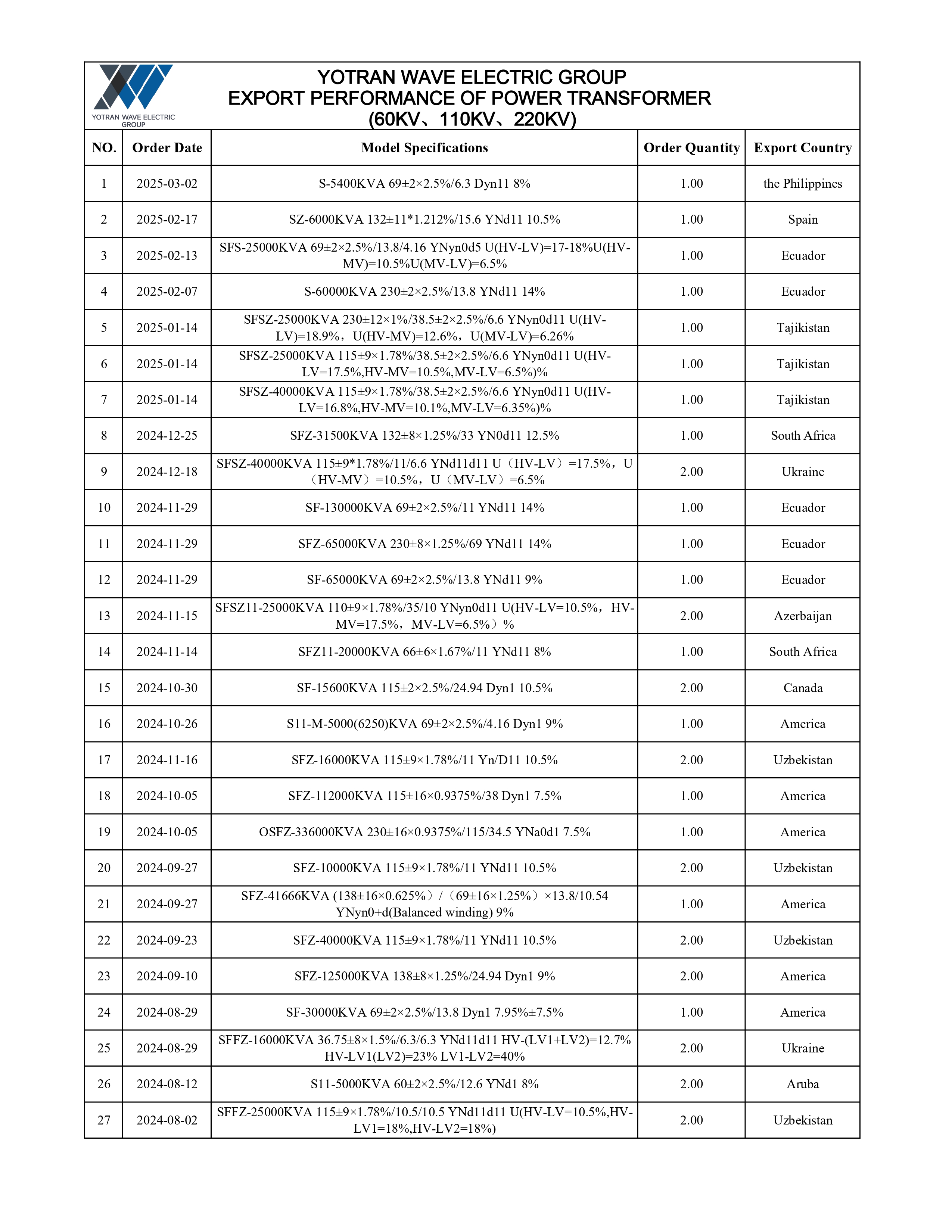

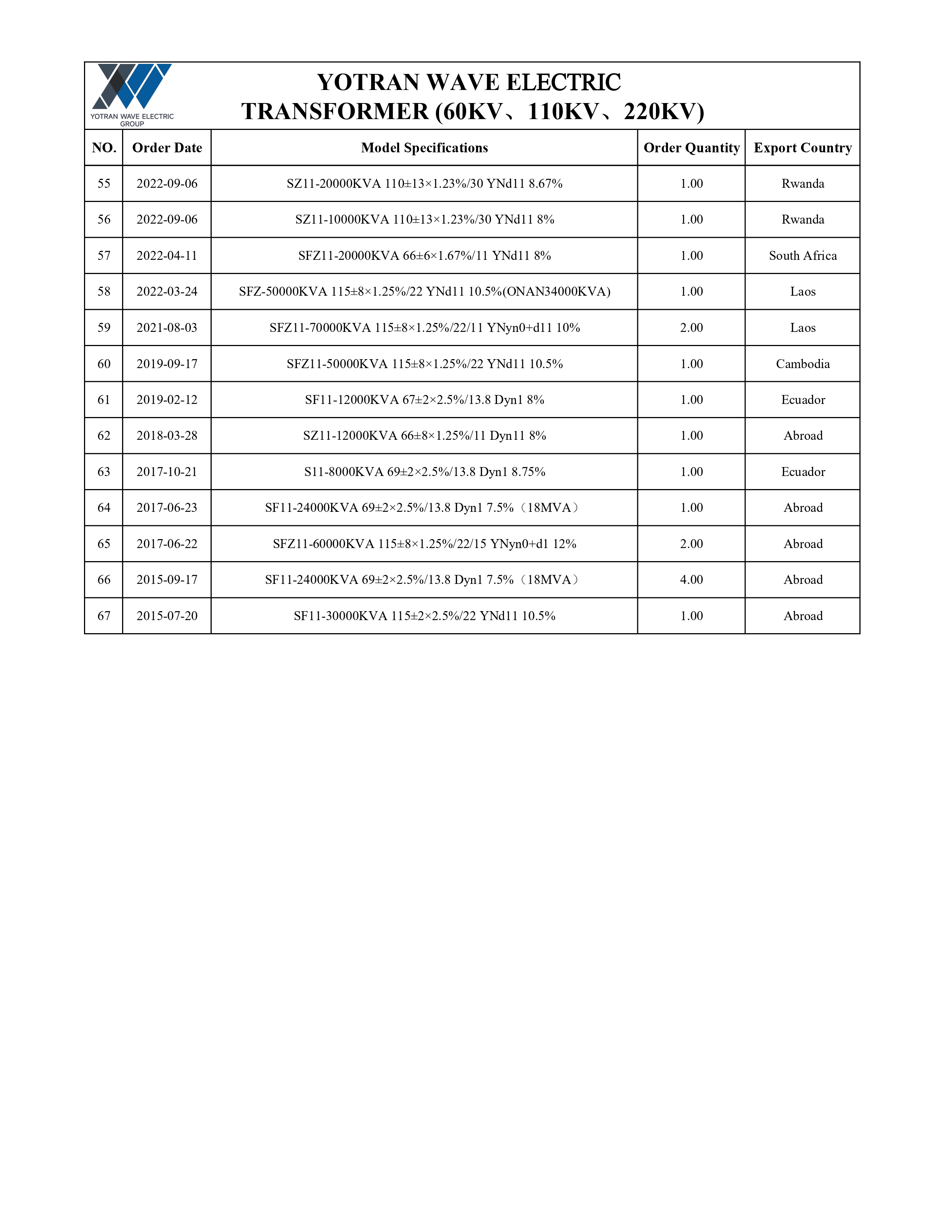

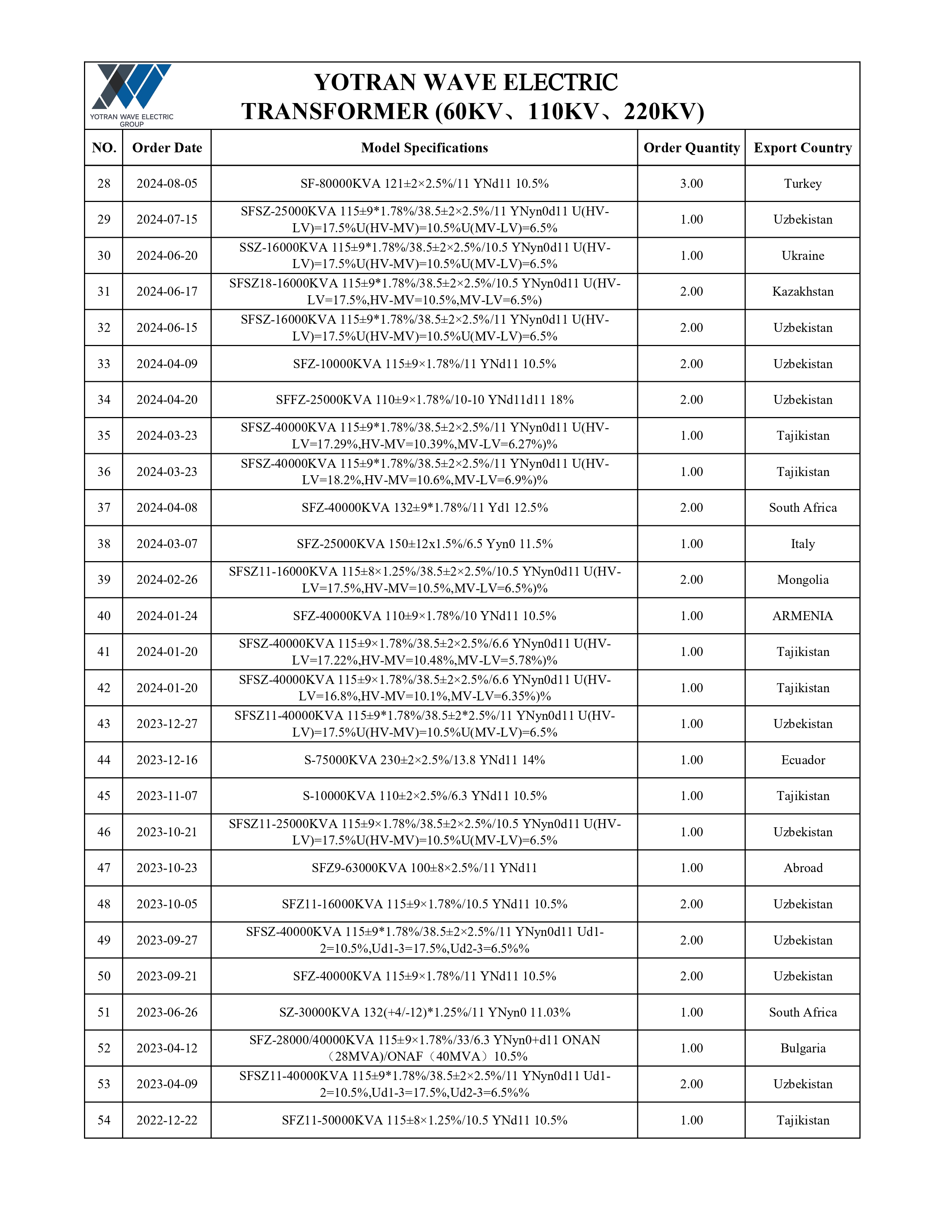

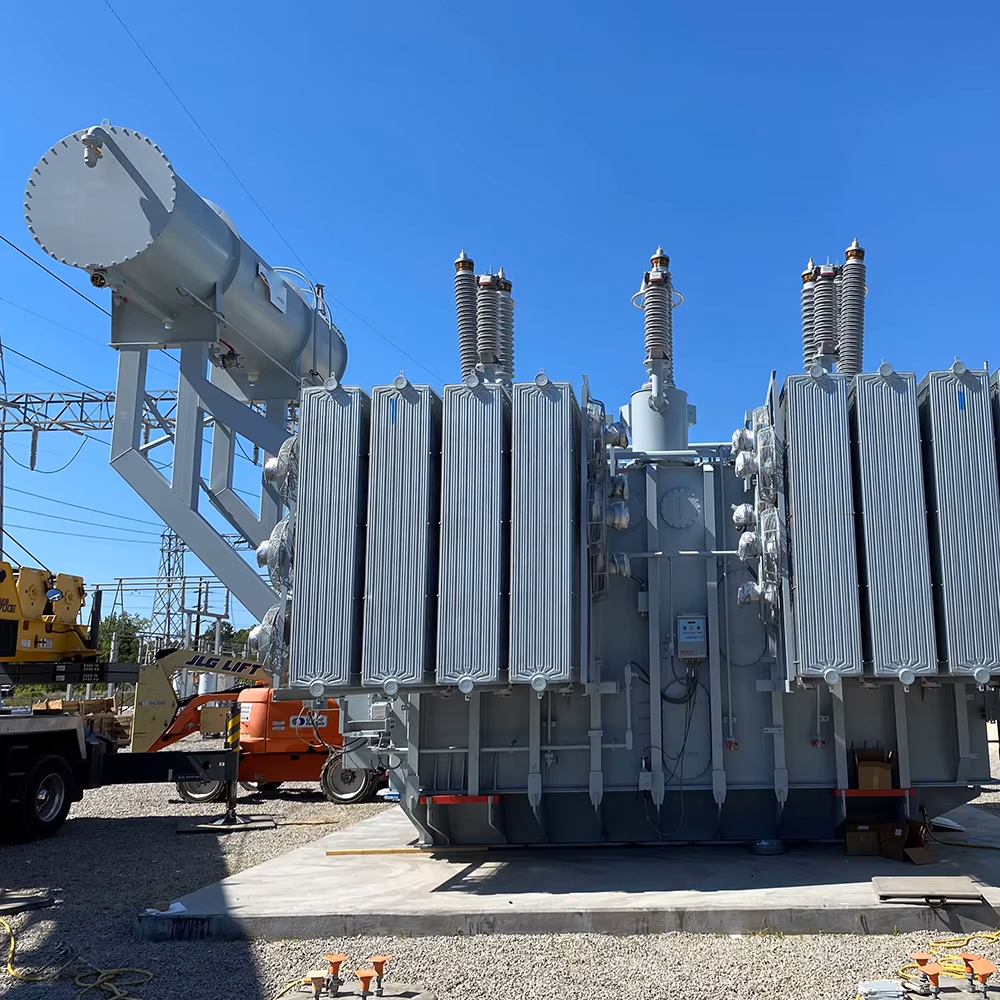

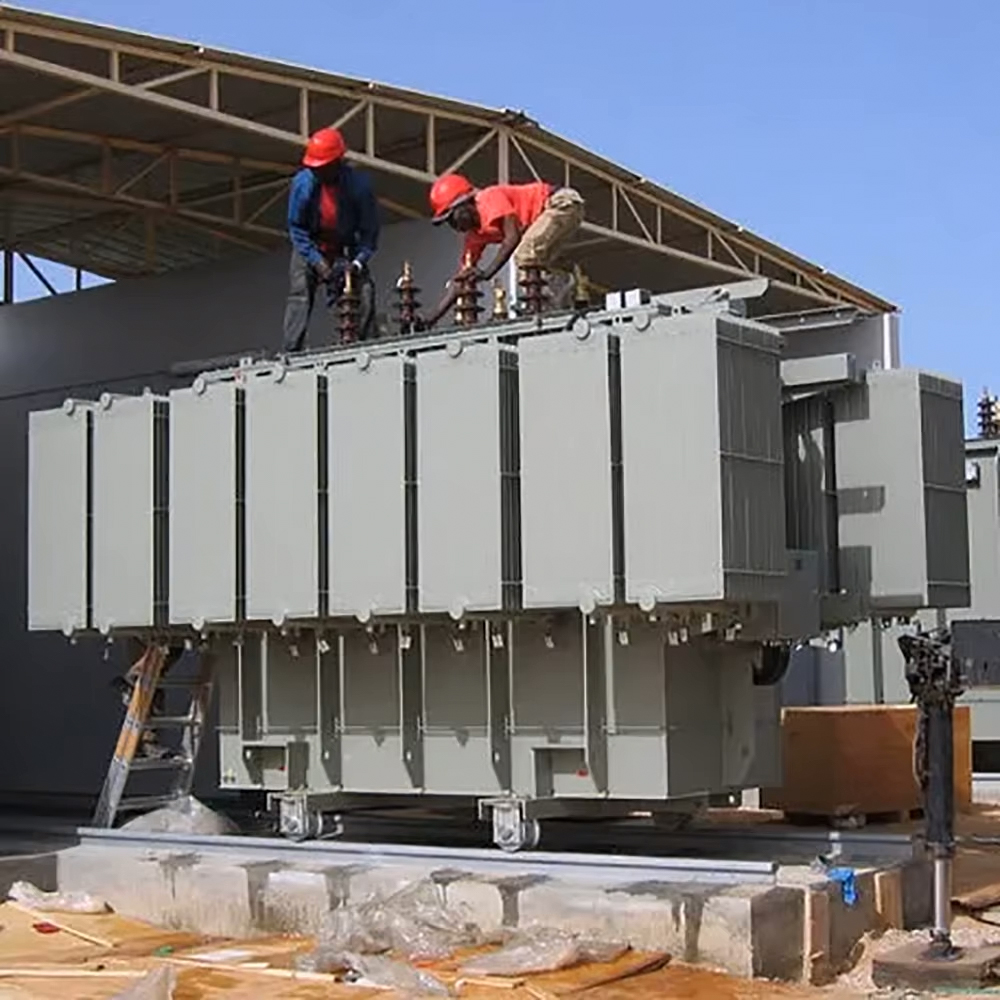

YOTRAN WAVE ELECTRIC GROUP EXPORT PERFORMANCE OF POWER TRANSFORMER 60KV 110KV 220KV
