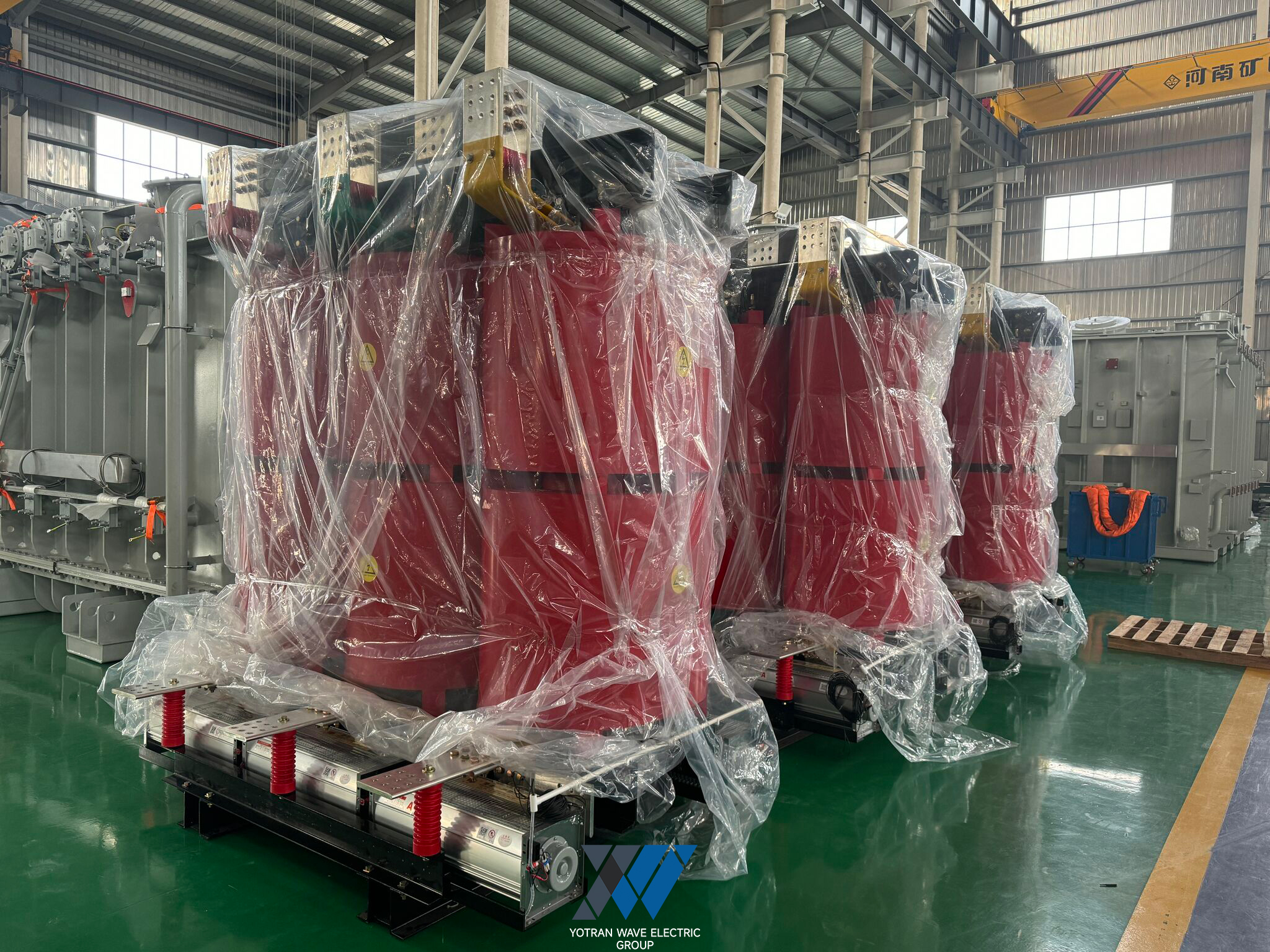

SCB, SCB12, SCB13, SCB14, SCB18 series Structural characteristics of resin-insulated dry-type power transformer:
Box-type coil: the low-voltage winding adopts the whole section of copper foil, and is wound on the special low-voltage foil winding machine with Class F insulation. Foil coil can solve the outstanding problems such as high short circuit stress, unbalanced ampere-turn, poor heat dissipation effect, winding spiral angle, unstable manual welding quality and so on. At the same time, the winding end of our company is sealed with resin, solidified, moisture-proof and antifouling. The lead copper bar is automatically welded by roller arc welding.

Temperature control device: the transformer adopts BWDK series signal thermometer, and the temperature measuring element is buried in the upper part of the low-voltage coil, which can automatically detect and display the working temperature of each phase coil, and has the function of overtemperature alarm and tripping.
