BWX-AC PHOTOVOLTAIC INTELLIGENTAC COMBINER BOX

The BWX-AC photovoltaic grid connected combiner box is an important component suitable for photovoltaic series power generation systems, which is used to undertake series inverters, AC distribution cabinets, or step-up transformers. The incoming line of this combiner box uses a circuit breaker input, and the output uses a circuit breaker or load isolation switch. After the busbar is merged, secondary lightning protection is used. The maximum rated voltage of the system is AC690V, and the protection level is IP65, which meets the requirements of outdoor installation. It meets the requirements of waterproofing, dust prevention, UV protection, salt spray corrosion resistance, etc.

This product greatly simplifies the wiring between the series inverter and the AC distribution cabinet or step-up transformer. The internal structure of this product is simple and clear, and the wiring is neat and reasonable. It has high reliability and is easy to maintain. Outdoor wall-mounted installation, able to adapt to various harsh environments. In addition to standard materials and sizes, it can be customized according to user requirements.

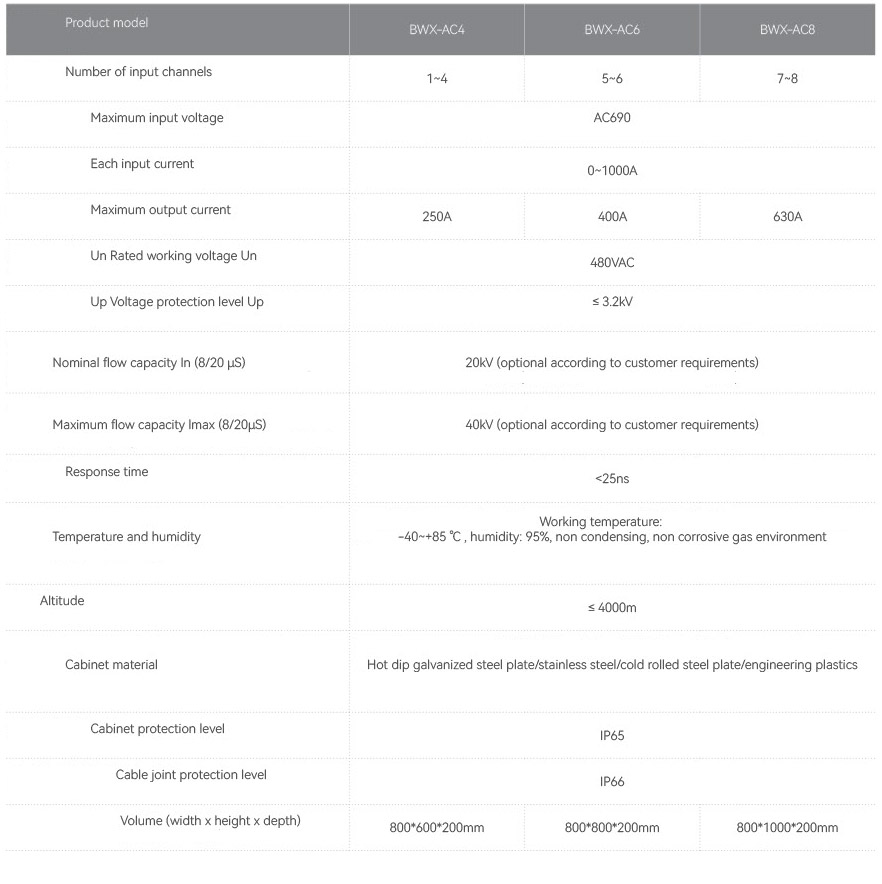

The AC combiner box is a wall-mounted sealed cabinet with a protection level of IP65 and can meet the outdoor installation requirements. It meets the requirement of simultaneously connecting multiple series inverters, with each incoming line protected by a thermal magnetic circuit breaker with a rated voltage of AC690V.

Adopting a dedicated high-voltage anti-roll device can meet the overvoltage and anti-roll protection between three phases, with a working voltage of AC480V or above.

All busbars in the box are connected using electroplated or purified busbars to reduce the internal resistance and connection points of the busbars. The output adopts a circuit breaker, load isolation switch, or fuse output.
