GZDW DC power supply cabinet

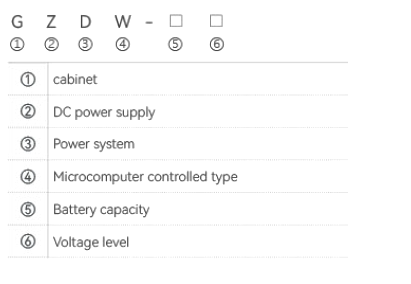

The GZDw DC power supply cabinet is applied to large, medium, and small power plants and substations as a DC power supply for high-voltage switch opening and closing, relay protection, automatic control, accident lighting, lighting, and audio signals under normal operation and accident conditions.

It can also be used as a DC power supply for industries such as metallurgy, railway, mining, petrochemical, postal and telecommunications, communication, medical and health, banks, hotels, high-rise buildings, and computer networks.

The microcomputer-controlled DC power cabinet can be used for unmanned and remote centralized monitoring of DC power supply in power plants, substations, and other industries.

This product complies with the JB/T5777.4-2000 "General Technical Conditions and Safety Requirements for DC Power Supply Equipment in Power Systems" standard.

◇ Altitude: not exceeding 2000m;

◇ Environmental temperature: -5 ℃ ~+40 ℃C;

◇ Relative humidity: not more than 90% (at 20 ± 5 ℃ );

Note: When ordering this product beyond the above conditions, please consult with our company.

◇ Input power supply voltage: three-phase AC 380V+10%, 50Hz 5%;

◇ Rated output DC voltage: 24V; 48V; 110V; 220V,

◇ Rated output DC current: 5A, 8A, 10A, 15A, 20A, 30A, 40A, 50A, 80A, 100A, 150A, 200A, 250A;

◇ Rated capacity of battery: 10Ah, 20Ah, 38Ah, 40Ah, 50Ah, 60Ah, 65Ah, 80Ah, 100Ah, 150Ah, 200Ah, 250Ah, 300Ah, 400Ah;

◇ Machine noise: <55dB;

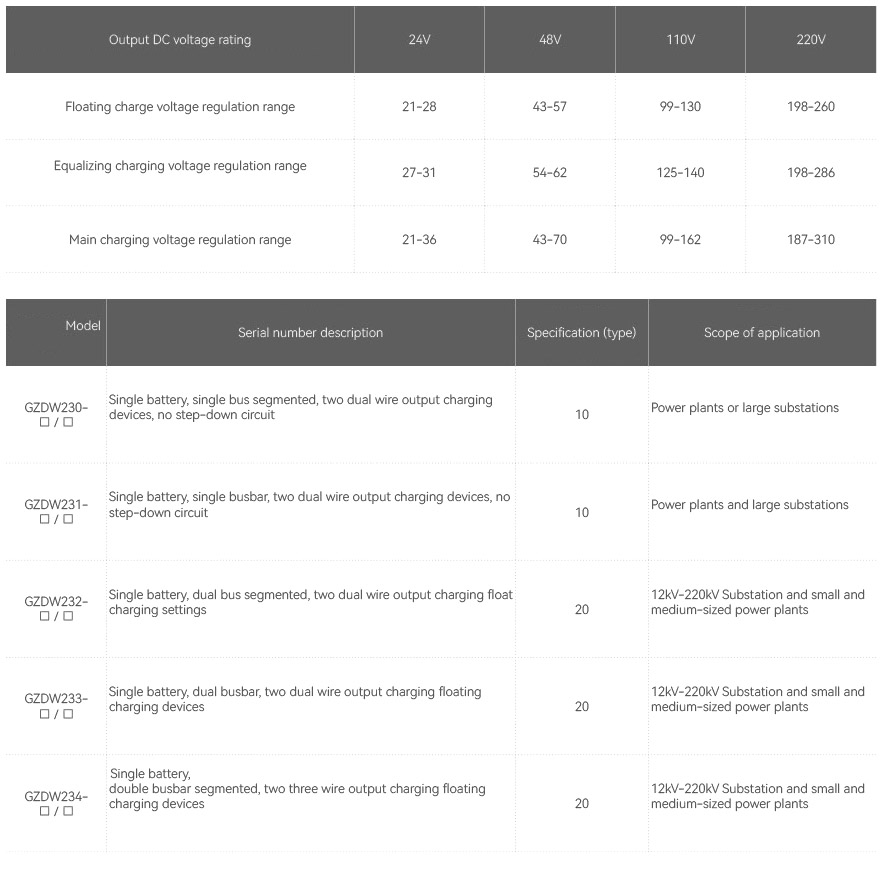

◇ Voltage regulation range (see Table 1):

◇ Output DC current regulation range: 0-100% of rated value,

◇ Temperature rise of main transformer: 70°C;

◇ Stable accuracy: <± 1%;

◇ Stable current accuracy: <± 1%;

◇ Ripple coefficient: <1%;

◇ Work mode: continuous work;

◇ Efficiency: >90%;

◆ Protection level: IP20~IP30;

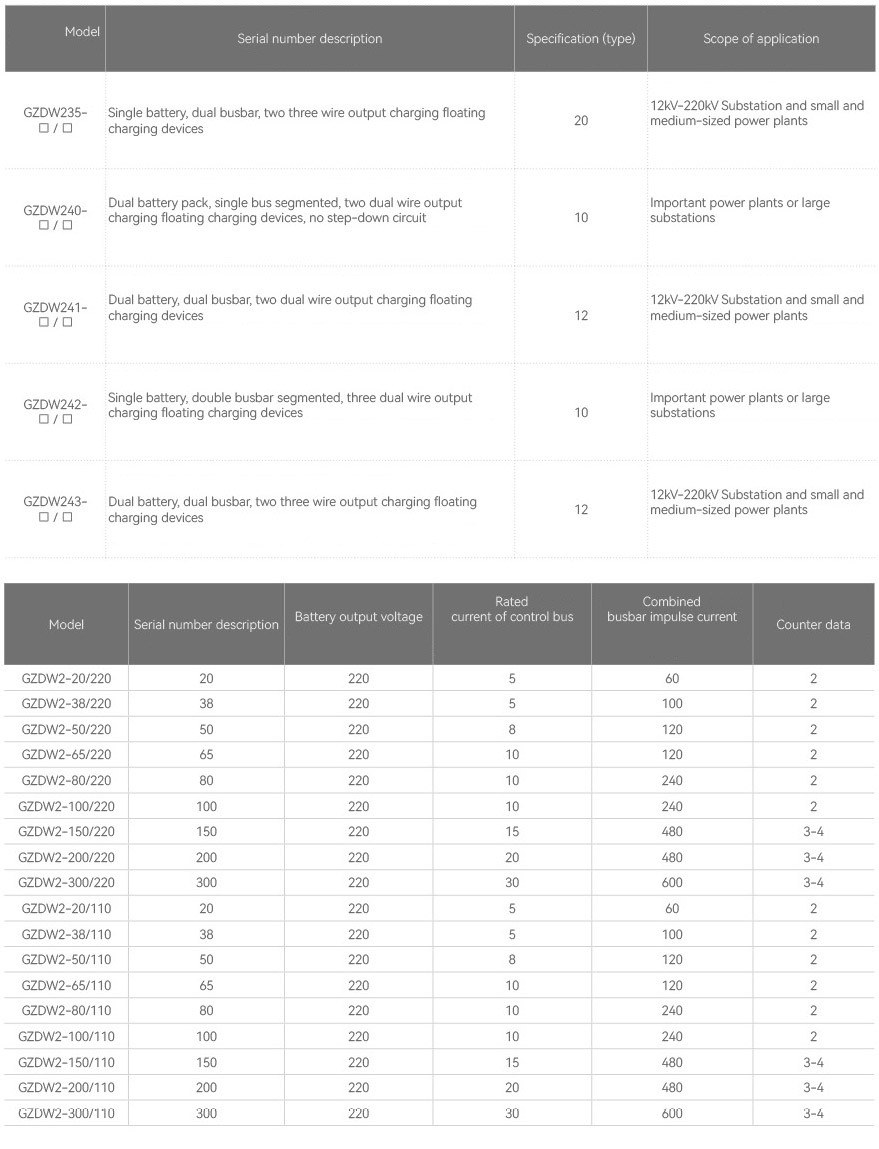

◇ Complete specifications: This series of products has a total of ten models and hundreds of specifications, which can fully meet the needs of large, medium, and small power plants, substations, and various industries for DC power supply;

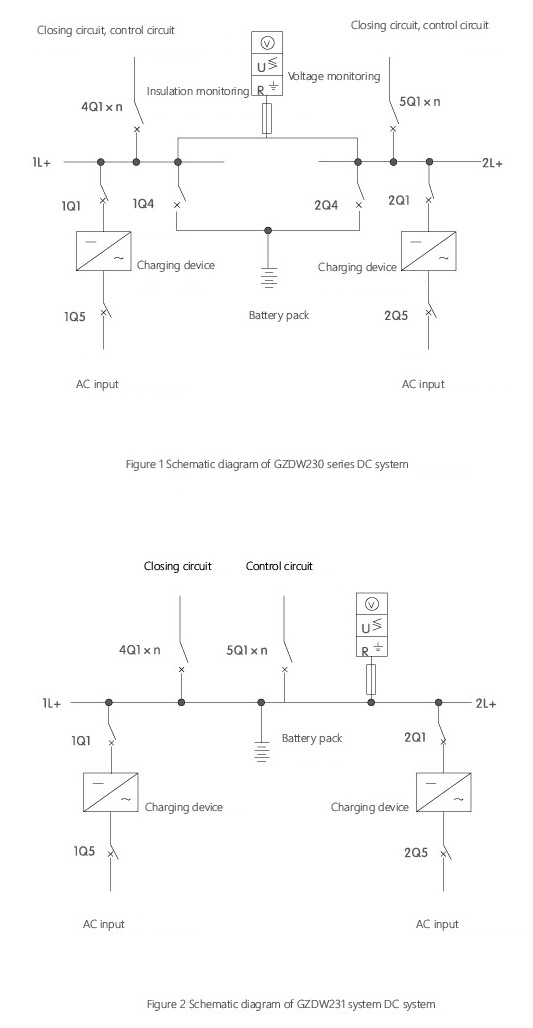

◇ Reliable operation: AC dual circuit automatic switching is included, and this product is equipped with two charging floating charging devices as backup for each other, making system switching convenient.

◇ Stable operation: This product has good anti-interference performance, high accuracy, and small ripple coefficient;

◇ Long battery service life: This product can strictly charge and float the battery according to the battery charging curve, avoiding overcharging or undercharging phenomena. The microcomputer-controlled type has a battery inspection function;

◇ Multiple protection: This product can track and detect various working points, combining software and hardware protection. The insulation detection device can check the insulation status of the busbar at any time;

◇ Smart communication: The microcomputer-controlled DC power cabinet can communicate with the upper computer, achieving centralized monitoring and unmanned duty.
