Under Oil MOV Surge Arrester

• The under oil MOV arrester is designed in accordance with IEEE Std C62.1, and for either horizontal or vertical mounting inside the distribution transformer tank to eliminate the difficulties associated with externally mounted arresters.
• When placed under oil, the MOV arrester benefits from the cooling effect of the circulating oil. In addition, under-oil mounting eliminates the possibility of shortened arrester life due to high surface contamination, wildlife, vandalism, or moisture ingress.
• The under-oil arrester also offers improved transformer protection since internal mounting eliminates the need for long lead lengths to the arrester.

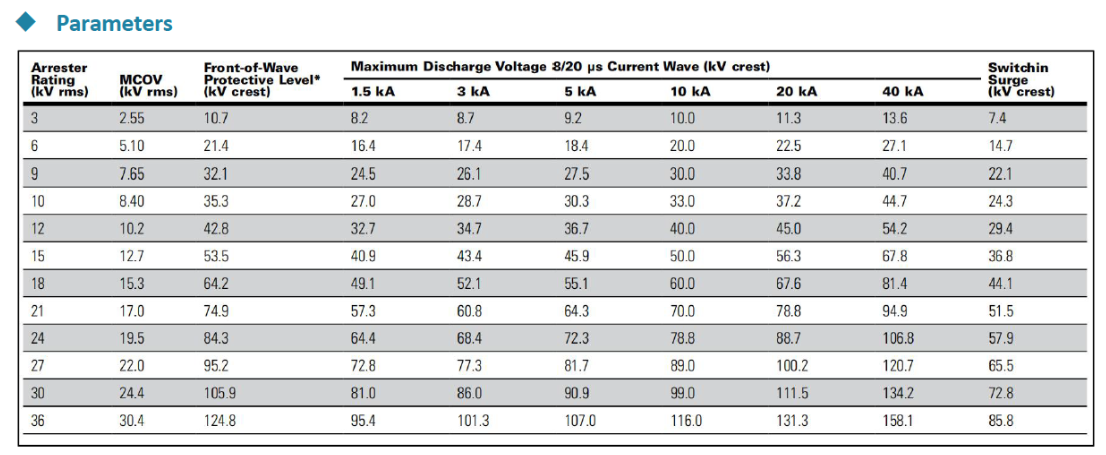

• The under oil arrester is available in ratings of 3 through 36kV.
