Transformer Oil Temperature Gauge

The transformer oil temperature gauge is suitable for the instrument installed on the side wall of the transformer for temperature measurement and indication. The temperature measurement range is 0~120°C.

Measuring range: -20℃~120℃ (Options: 0℃~100℃, 0℃~150℃)

Indication accuracy: Level 1.5

Structural form: Axial

Installation thread: M27x2

Temperature air bag size: φ10x150

Contact form: Double upper limit

Contact capacity: 10VA/380V (resistive)

Case: 304 stainless steel, polish, non-vent.

Pointer: aluminium, white painting, non-adjustable.

Lens: polymethyl methacrylate.

Accuracy: 3%

Connection: Cr stainless steel M27 X 2.

Tube & Socket & Movement: 304 stainless steel.

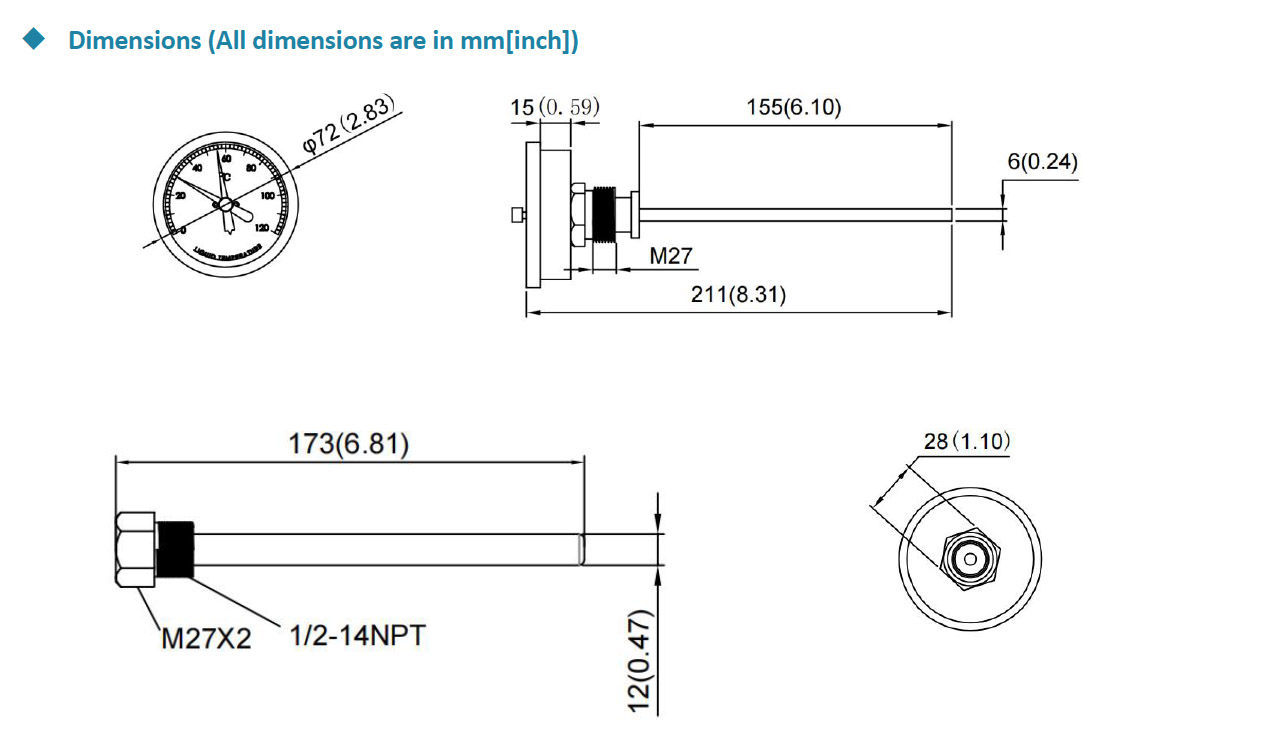

Temperature gauge well: 304 stainless steel, polish, internal thread, M27 X 2, external thread, M27 X 2, 1/2-14, diameter 12mm, length 173mm.
