25kV 200A Loadbreak Feed-thru Insert

• The loadbreak feed-thru insert threads onto a standard 200A bushing well and provides dual loadbreak bushing interfaces. It can convert radial-feed transformers to feed thru transformers and add in-line arrester protection if needed.

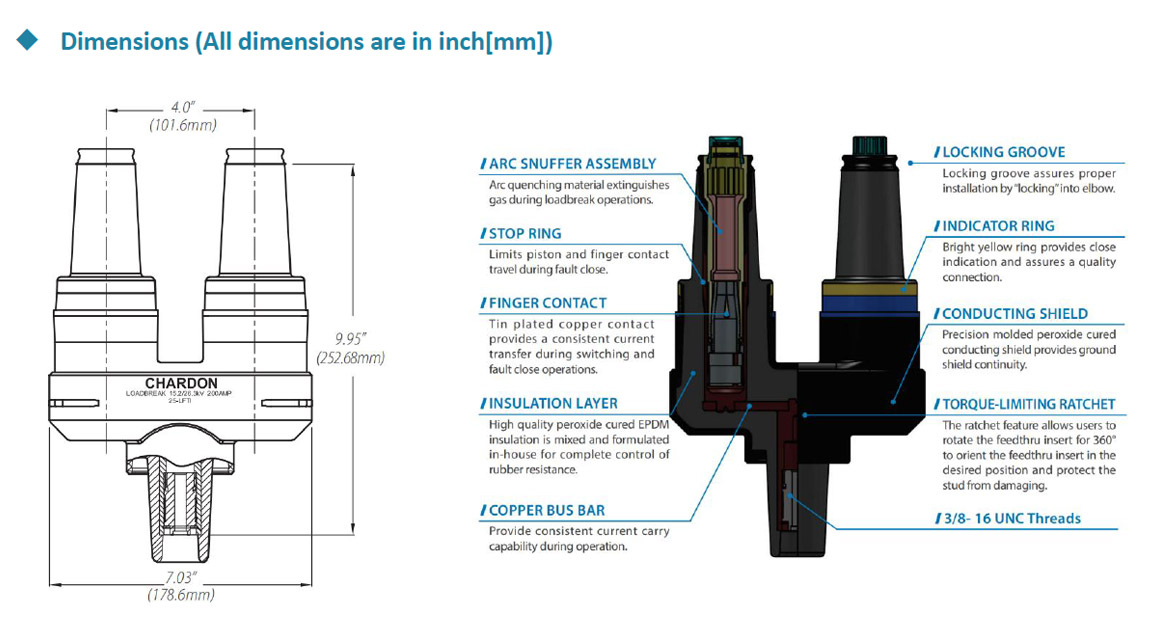

• The torque limit ratchet feature prevents the bushing well stud from breaking during installation. The ratchet feature allows users to rotate the feed thru insert for 360° to orient the feedthru insert in the desired position.
• The Loadbreak Feed Thru Insert meets all the requirements of IEEE Standard 386, when installed with mating components, the bushing insert provides a fully shielded and fully submersible connection for loadbreak applications.
