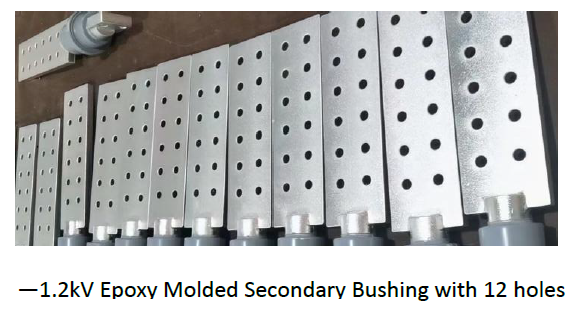

1.2kV Epoxy Molded Secondary Bushing

This type bushing is epoxy molded, it is removable secondary bushing, and is used for connecting cables outside of pad-mounted transformer tanks to the secondary coil winding leads inside the tanks. It is designed for use in transformer oil or an approved equivalent.

It is externally clamped for sidewall mounting through a hole. The bushing is designed for use inside cubicles only.

All metallic parts of the bushing is tin plated for more efficient current interchange.
