15/25kV 200A Deadbreak Bushing Insert

• The Deadbreak Bushing Insert threads into a standard 200A bushing well.
• It is a fully shielded, fully submersible separable connector designed for deadbreak operation.
• It is suitable for 15/25 kV class systems and can be installed in transformers, switchgear or other apparatus when needed to connect with deadbreak connectors.

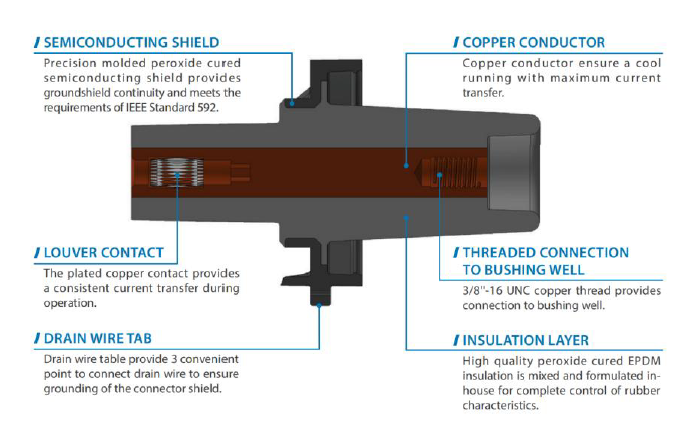

• The Deadbreak Bushing Insert incorporates an all copper current path.
• This provides reliable and consistent performance under all conditions.
• The design meets all the requirements of IEEE standard 386, and is fully interchangeable with the products that meet the IEEE Standard 386.
